Description

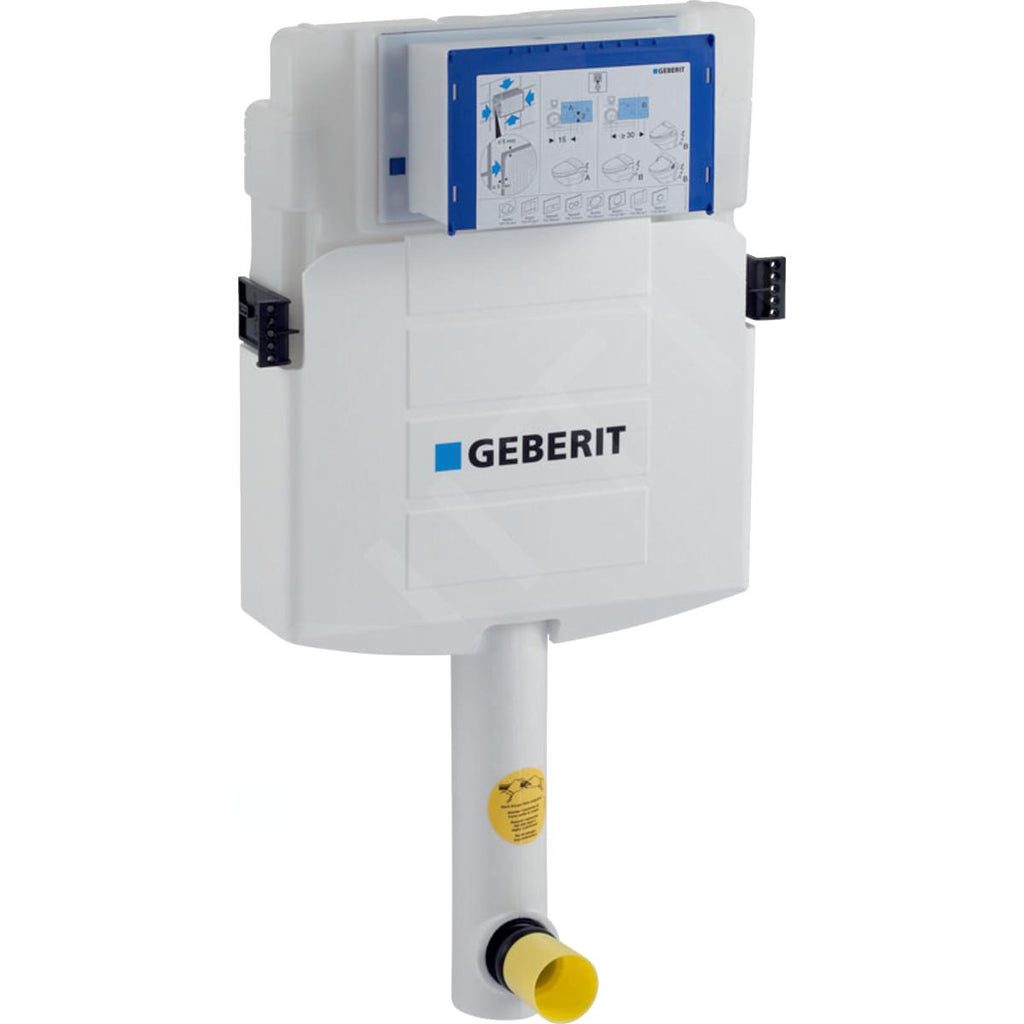

Cistern Sigma 12 cm, concealed
- For brick walls
- For installation in sometimes high or high installations in front of walls
- For installation in floor-to-ceiling installation walls
- For floor-standing and wall-mounted toilets
- For 1 flush water volume, 2 rinse water volumes or start/stop flush
Properties
- Concealed cistern with front operation
- Flush-mounted cistern insulated against fogging
- Additional flush set at the factory
- Flushing elbow inserted
- Concealed cistern for installation and service work without tools
- Water connection at the back or top in the middle
- The cover for the rough installation of the service opening protects against moisture and contamination
- Cover for rough installation of the service opening with the possibility of shortening it without tools
Specifications
- Flow pressure: 10-1000 kPa
- Maximum water temperature: 25 °C
- Flush water volume, set at the factory: 6 and 3 l
- Large flush water volume, setting range: 4.5 / 6 / 7.5 l
- Small flush water volume, setting range: 3-4 l
